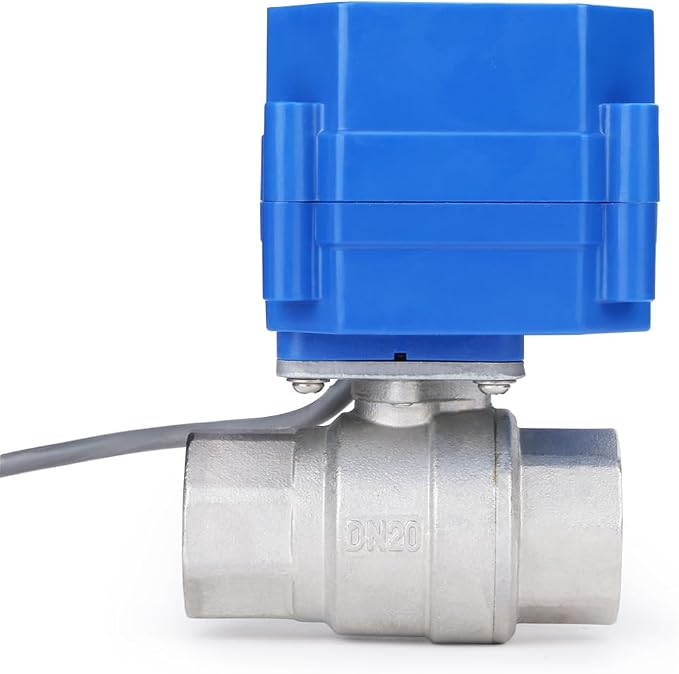

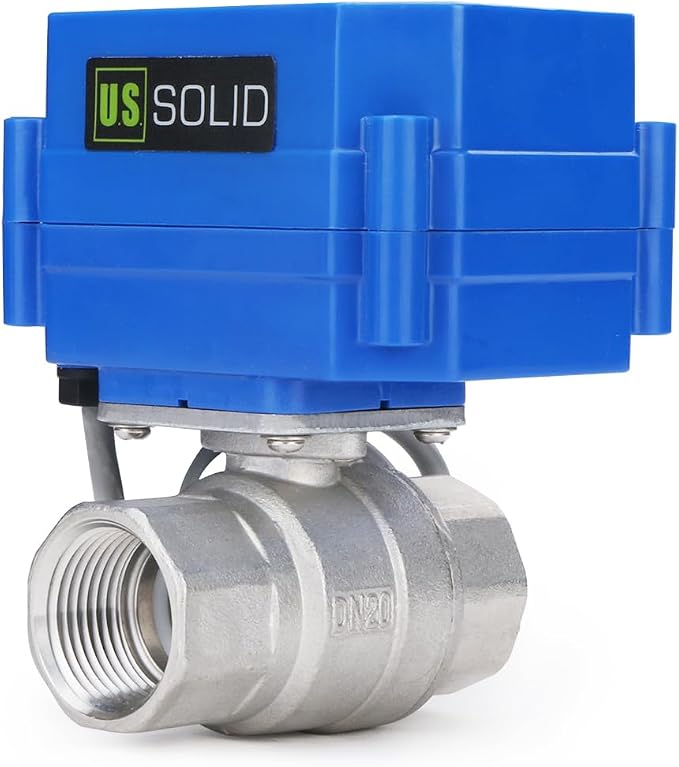

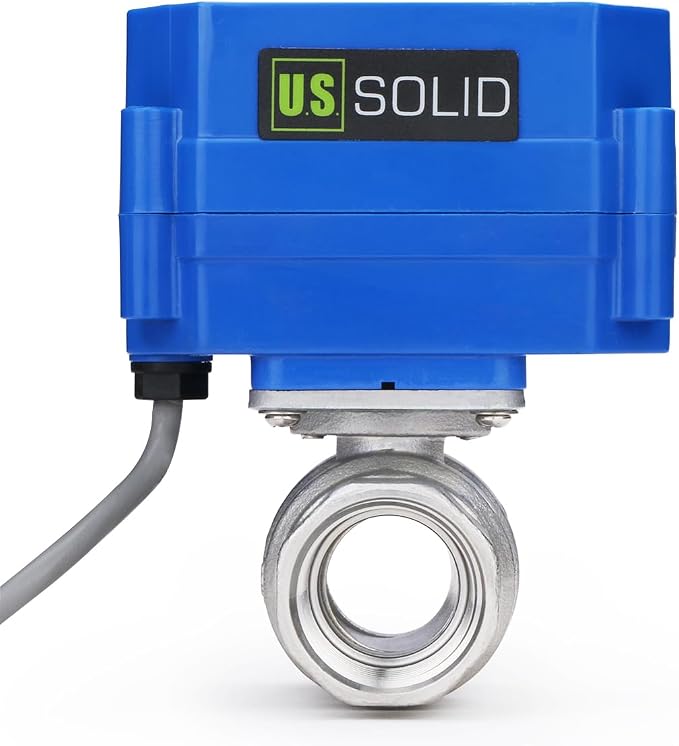

U.S. Solid 3/4" Motorized Ball Valve

Product Overview

For daily workouts, the U.S. Solid 3/4" Motorized Ball Valve - NSF Certified 304 Stainless Steel Electric Valve, Normally Closed (N.C.), 9-24V DC, 5-WIRE Control with Open/Closed Signal Output, Full Port offers ergonomic performance backed by reduced injury risk. Featuring Stainless Steel,Steel, measuring 3/4 inches. Notable features include metal components and nsf certified, contributing to its reliable character.

Key Features

• The metal components are NSF Certified 304 stainless steel that resists corrosion and is safe for drinking water; a lead-free path for potable water and general fluid lines
• Yellow and blue wires drive open and close; removing power holds valve position; green/black and red/black signal wires connect to your PLC, controller, or panel to show whether the valve is open or closed
• Operates across the full 9 to 24 V AC/DC range and drives fully open or fully closed in 6 to 8 seconds; draws 5 W with 6 Nm of torque; low power draw after reaching position helps reduce heat buildup
• The full-port bore matches the 3/4 inch pipe with a 20 mm opening for full, unrestricted flow and minimal pressure drop, suited to water, air, gas, and oil lines in home and irrigation systems
• Rugged enclosure seals against dust and water spray; PTFE and silicone seats with an NPT thread offer 80,000 to 100,000 cycles for irrigation, HVAC loops, water treatment, and home automation

Why Choose the USSolid U.S. Solid 3/4" Motorized Ball Valve - NSF Certified 304 Stainless Steel Electric Valve

The U.S. Solid 3/4" Motorized Ball Valve - NSF Certified 304 Stainless Steel Electric Valve, Normally Closed (N.C.), 9-24V DC, 5-WIRE Control with Open/Closed Signal Output, Full Port represents a flexible take on ball valves, with metal components that supports reliable durability consistently.

Best For

The U.S. Solid 3/4" Motorized Ball Valve - NSF Certified 304 Stainless Steel Electric Valve, Normally Closed (N.C.), 9-24V DC, 5-WIRE Control with Open/Closed Signal Output, Full Port performs reliably in daily workouts, where its flexible design supports reduced injury risk.

Quick Summary

The USSolid U.S. Solid 3/4" Motorized Ball Valve - NSF Certified 304 Stainless Steel Electric Valve is a Ball Valves product by USSolid. Material: Stainless Steel,Steel. Brand: U.S. Solid. Exterior Finish: Stainless Steel,Steel. Inlet Connection Size: 3/4 inches. Inlet Connection Type: National Pipe Tapered. Price: $99.44.

Product Specifications
