Product Overview

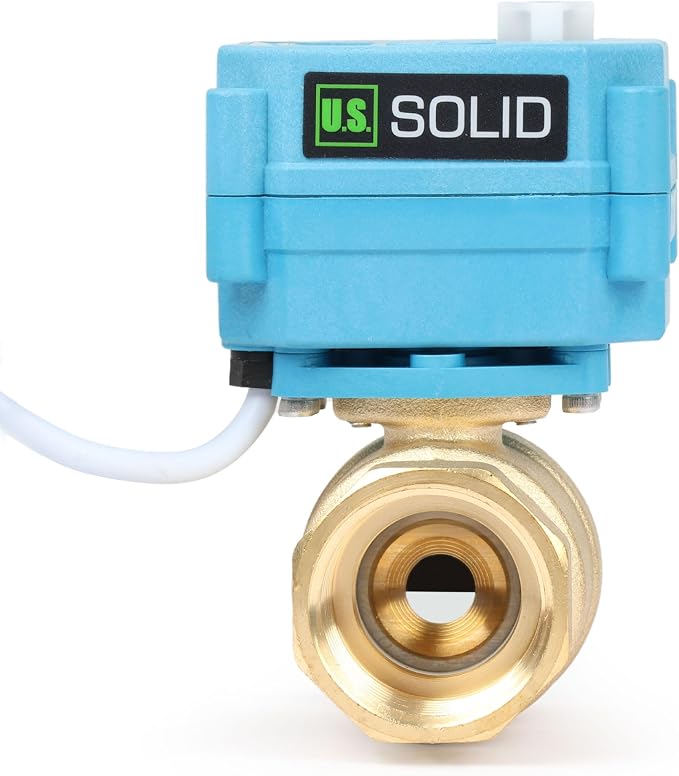

A durable take on sports practice, the U.S. Solid 1inch Brass Motorized Ball Valve, 9-24V, Full Port NPT, IP67 Waterproof Cover, 2 Wire Auto Return, Normally Closed, for Irrigarion and HVAC delivers comfortable performance where it matters. Made with Brass, measuring 6 x 3.5 x 3.19 inches. Notable features include 9-24v automatic and automatic shutoff, contributing to its ergonomic character.
Key Features
- 9-24V Automatic Shutoff Valve: Designed for 9-24V low-voltage systems, this normally closed motorized ball valve opens when powered and automatically returns closed when power is removed.
- IP67 Waterproof Protection: Rated IP67 for dust and water resistance. The included waterproof cover helps protect the actuator from rain and moisture, making it suitable for wet or covered outdoor environments.

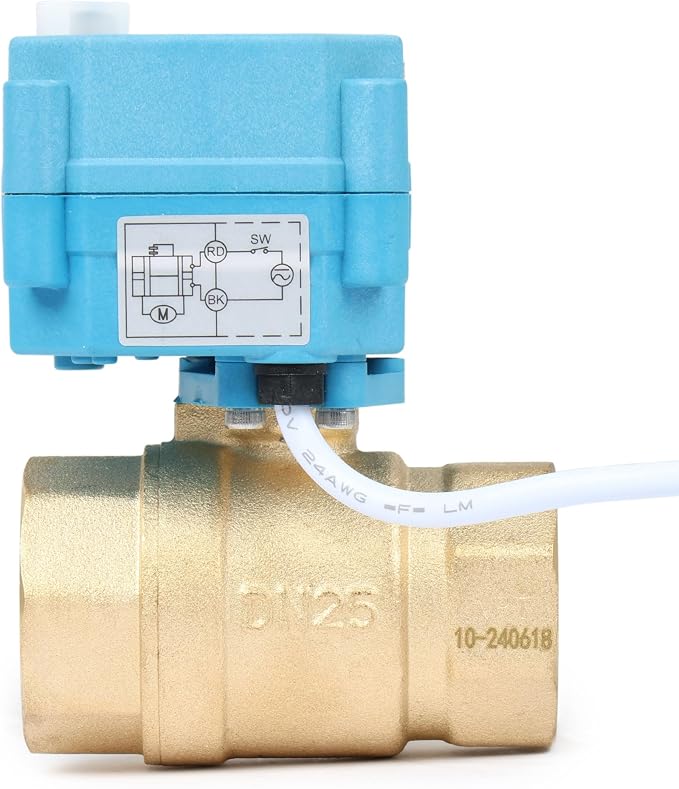

- 2-Wire Auto Return Setup: Simple 2-wire connection makes installation easier. The valve uses power mainly while opening and automatically returns to the fully closed position when power is off.

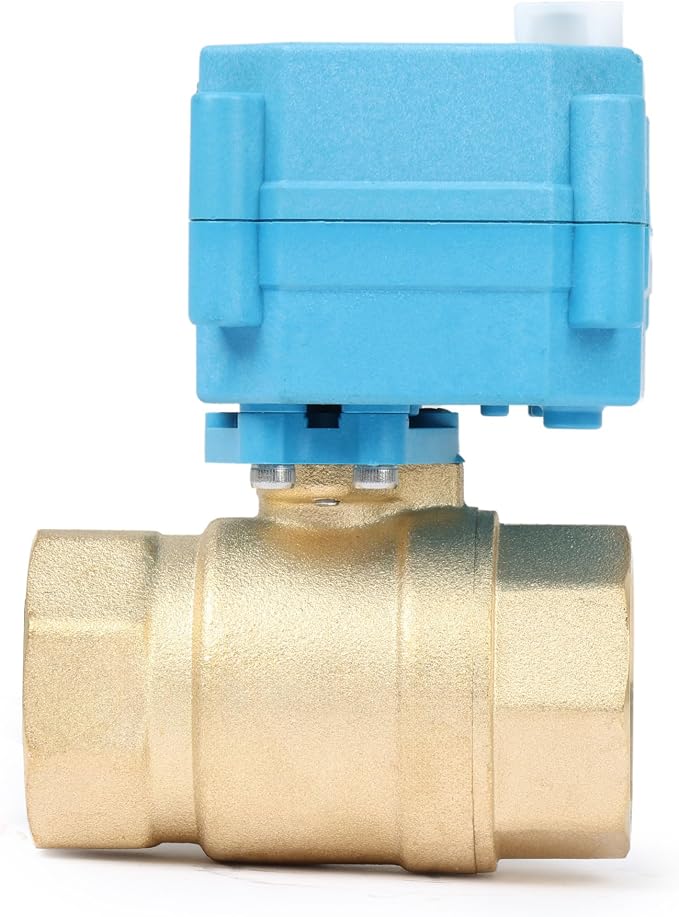

- Full Port Brass NPT Valve: Durable brass body with standard NPT threading and full port design helps maintain smooth flow and reduce pressure loss in non-potable water and fluid control systems.
- Reliable for Automation Projects: Rated for at least 70,000 cycles, this electric ball valve is ideal for home automation, irrigation, HVAC, tanks, pumps and other non-drinking-water applications.
Why Choose the USSolid U.S. Solid 1inch Brass Motorized Ball Valve
With 9-24v automatic and ip67 waterproof, the U.S. Solid 1inch Brass Motorized Ball Valve, 9-24V, Full Port NPT, IP67 Waterproof Cover, 2 Wire Auto Return, Normally Closed, for Irrigarion and HVAC achieves reduced injury risk that others in the ball valves category often miss.
Best For
The USSolid U.S. Solid 1inch Brass Motorized Ball Valve is best suited for: 9-24V low-voltage systems, wet or covered outdoor environments, home automation.
Quick Summary

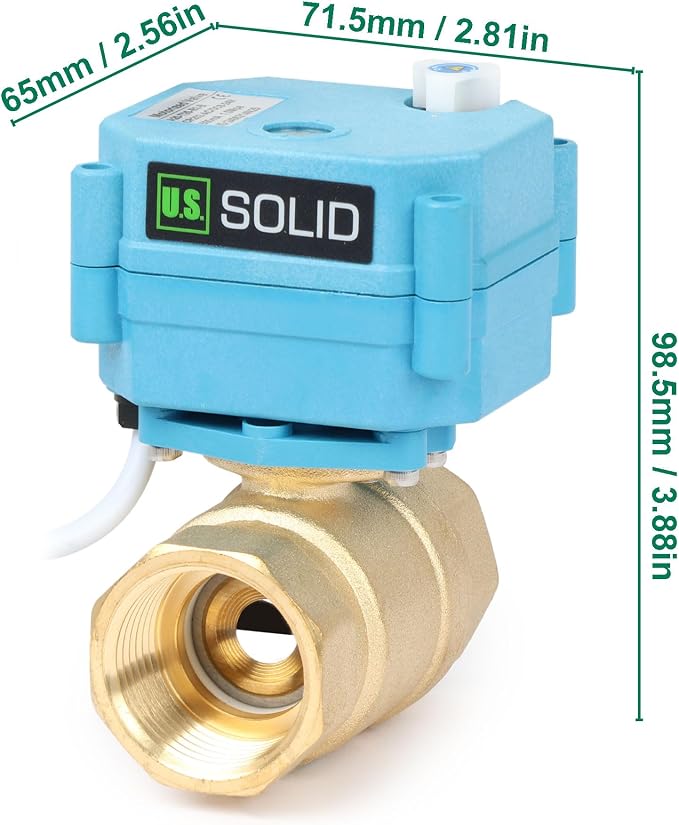

The USSolid U.S. Solid 1inch Brass Motorized Ball Valve is a Ball Valves product by USSolid. Material: Brass. Brand: U.S. Solid. Item dimensions L x W x H: 6 x 3.5 x 3.19 inches. Exterior Finish: Brass. Inlet Connection Size: 1 inches. Price: $133.38.
Product Specifications
| Specification | Details |
|---|---|
| Material | Brass |
| Brand | U.S. Solid |
| Item dimensions L x W x H | 6 x 3.5 x 3.19 inches |
| Exterior Finish | Brass |
| Inlet Connection Size | 1 inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | NPT |
| Number of Ports | 2 |
| Outlet Connection Size | 1 inches |
| Specification Met | ASME B16.34 |
