Product Overview

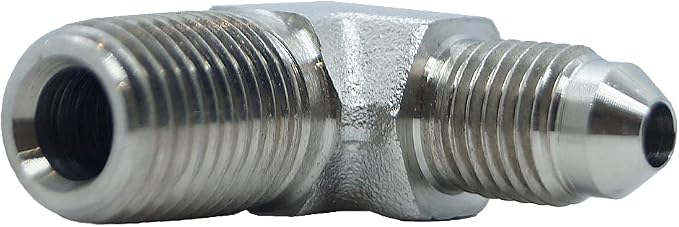

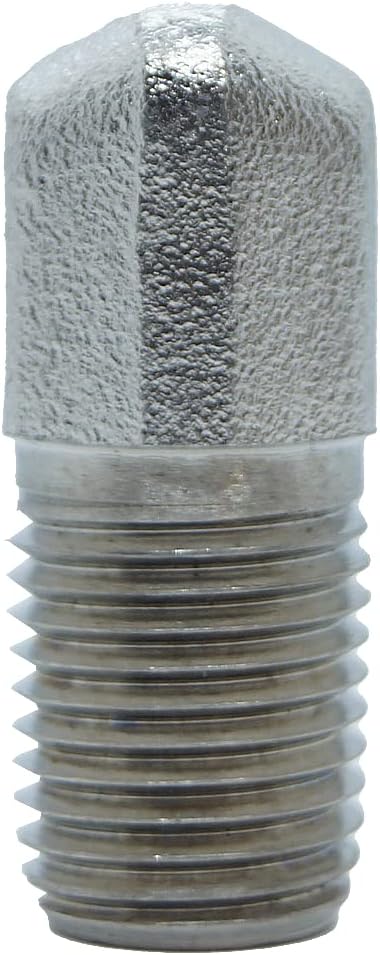

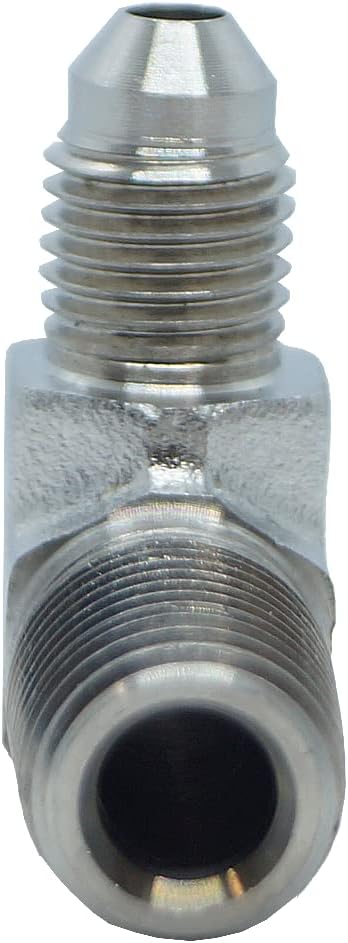

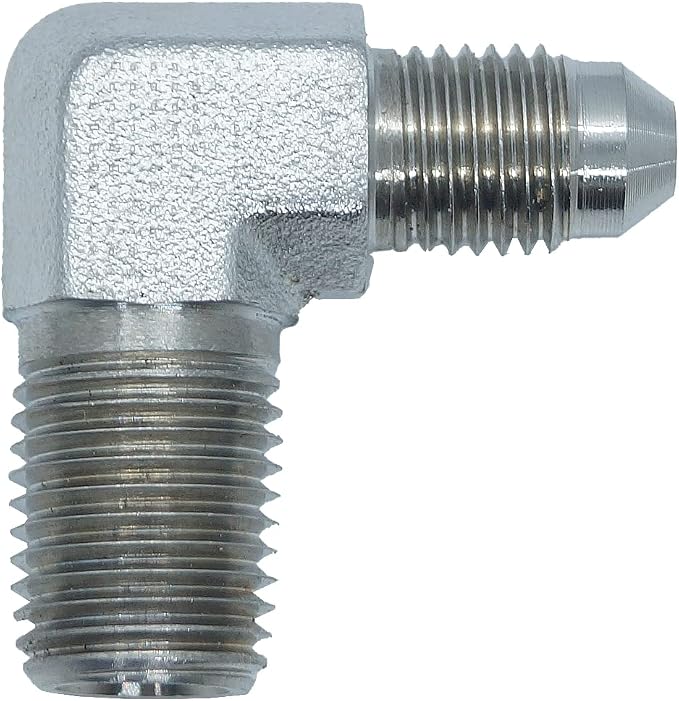

With reliable build quality and practical use, the RFS Stainless Steel JIC Flared Tube Fitting, 90 Degree Elbow, 1" JIC Male x 1" NPT Male addresses the needs of household use. Built with Stainless Steel, measuring 1"JIC x 1"NPT, weighing 0.33 kg, available in Silver. Notable features include 90-degree elbow and connecting tubes, contributing to its practical character.
Key Features
- 90-degree elbow for connecting tubes at an angle
- Tube connection on one end and male NPTF connection on the other
- Made of stainless steel ss316 with higher resistance against corrosion and rust
- Working pressure: 5000 psi, burst pressure: 20,000 psi
- Operating temperature ranges from -63 to 400 F
Why Choose the RFSHydraulics RFS Stainless Steel JIC Flared Tube Fitting
Picking the RFS Stainless Steel JIC Flared Tube Fitting, 90 Degree Elbow, 1" JIC Male x 1" NPT Male means choosing versatile engineering with everyday convenience. The 90-degree elbow reinforces its position in the fittings space.
Best For
The RFS Stainless Steel JIC Flared Tube Fitting, 90 Degree Elbow, 1" JIC Male x 1" NPT Male pairs naturally with household use situations, offering practical use when it counts.
Quick Summary
The RFSHydraulics RFS Stainless Steel JIC Flared Tube Fitting is a Fittings product by RFSHydraulics. Size: 1"JIC x 1"NPT. Material: Stainless Steel. Brand: RFS. Color: Silver. Item dimensions L x W x H: 2.65 x 1.69 x 2.81 inches. Price: $65.8.
Product Specifications
| Specification | Details |
|---|---|
| Size | 1"JIC x 1"NPT |
| Material | Stainless Steel |
| Brand | RFS |
| Color | Silver |
| Item dimensions L x W x H | 2.65 x 1.69 x 2.81 inches |
| Connector Type | Elbow |
| Thread Size | 1 inch |
| Exterior Finish | Alloy Steel, Stainless Steel |
| Thread Type | npt,nptf |
| Item Weight | 0.33 kg |
